High Modularity

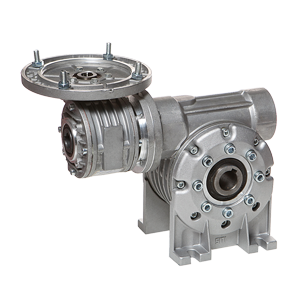

Worm gearboxes suitable for the modular assembling of flanges, feet and torque arm.
High Versatility
Wide range of combinations and mounting positions.
High Performances
Max input power 6.6 kW.
Max torque up to 4400 Nm.
Ratios up to 8000/1.
High Reliability
Up to size 80, housing built in pressure die casting aluminium, designed in order to guarantee lightness, strength and stiffness.
For sizes larger than 80 we supply a sturdy cast iron housing that is also suitable for heavy-duty applications.
“ZI” teeth profile on worms and wormwheels for a silent working without vibrations.
Optional Accessories
Torque limiter
Double extension input shaft
Single/double solid output shaft
Torque arm
Worm gearboxes suitable for the modular assembling of flanges, feet and torque arm.
High Versatility
Wide range of combinations and mounting positions.
High Performances
Max input power 6.6 kW.
Max torque up to 4400 Nm.
Ratios up to 8000/1.
High Reliability
Up to size 80, housing built in pressure die casting aluminium, designed in order to guarantee lightness, strength and stiffness.
For sizes larger than 80 we supply a sturdy cast iron housing that is also suitable for heavy-duty applications.
“ZI” teeth profile on worms and wormwheels for a silent working without vibrations.
Optional Accessories
Torque limiter
Double extension input shaft
Single/double solid output shaft
Torque arm
Additional Info
Additional Info
| Brand | Siti |
|---|
