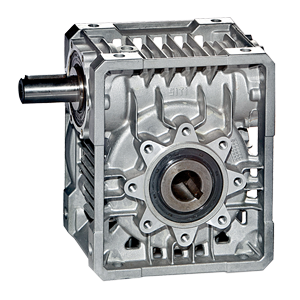

U Series Worm Gearboxes
Part number SITI04
Price and delivery time on request. Questions? Call +39 080 5367090 or write to info@tecnicaindustriale.eu.
Description
High Modularity
Worm gearboxes suitable for the modular assembling of flanges and torque arm.
High Versatility
7 sizes with wide range of different mounting positions.
High Performances
Max input power 17.7 kW.
Max torque 885 Nm.
Ratios up to 100/1.
High Reliability
Housing built in pressure die casting aluminium, designed in order to guarantee lightness, strength and stiffness.
In the size 30, housing in Nylon PA 6,6 GF 30 for aggressive environments.
“ZI” teeth profile on worm and wormwheels for a silent working without vibrations.
Optional Accessories
Double extension input shaft
Single/double solid output shaft
Torque arm
